iAuto Premium Series – Key Differences
-Updated on April 9th, 2026
| Feature | iAuto Premium 1.0 | iAuto Premium 2.0 | iAuto Premium Ultra 1.0 | iAuto Premium Ultra 2.0 |
|---|---|---|---|---|
| Version Relation | Original | Downgrade of Premium Ultra 1.0 (no auto pen switch) | Original Ultra | Upgrade of Premium Ultra 1.0 |
| Capacity per Load | 1,200 letters / 350 envelopes | 2,400 letters / 700 envelopes | 2,400 letters / 700 envelopes | 2,400 letters / 700 envelopes |
| Auto Pen Switching | No | No | Yes | Yes |

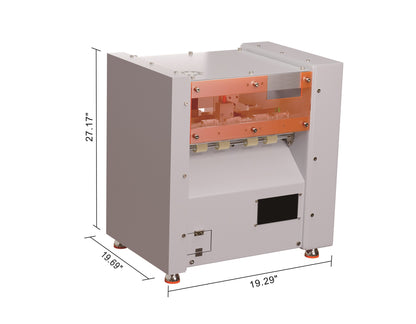

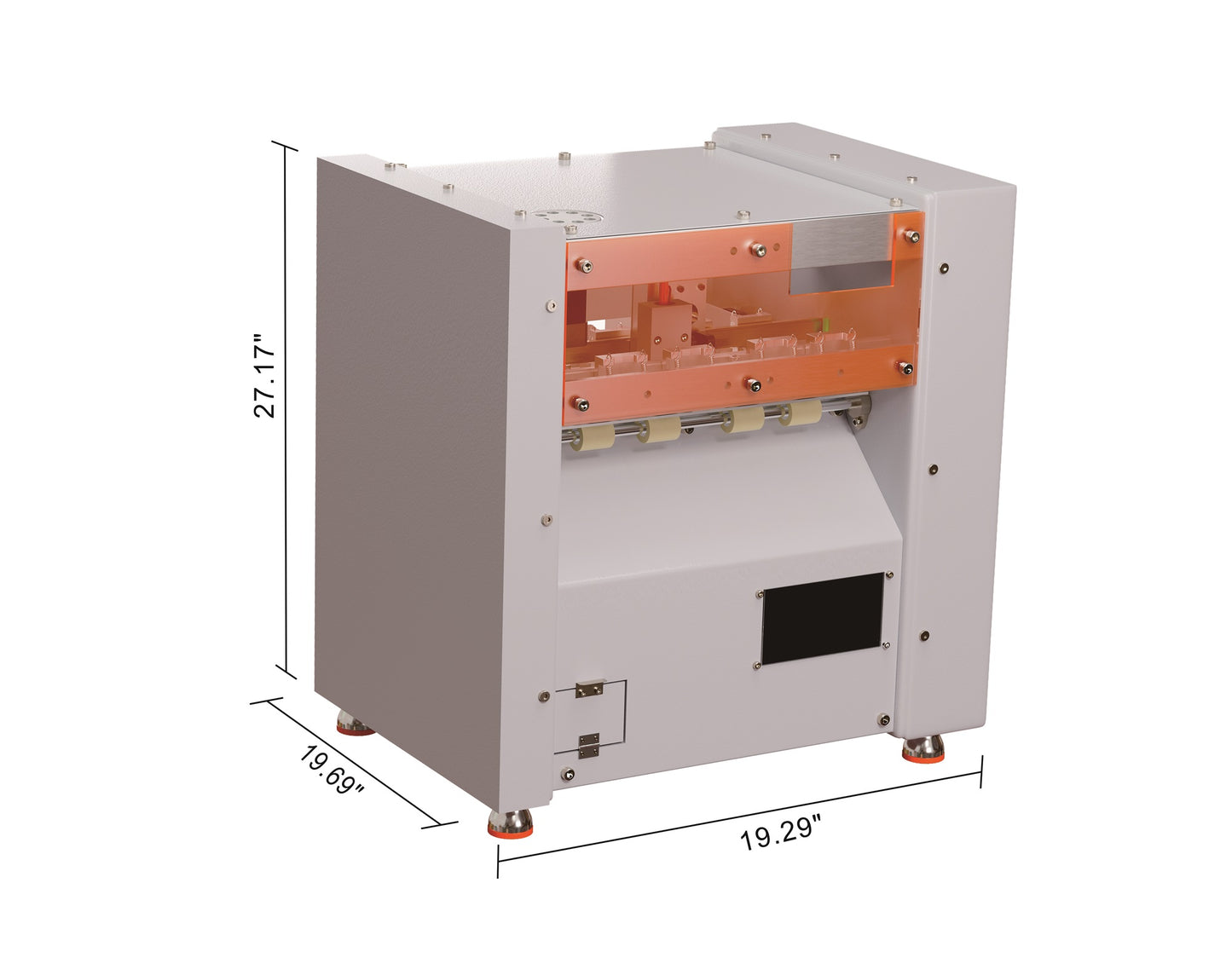

| Chassis Size | 488 × 196 × 532 mm | 488 × 196 × 700 mm | 488 × 196 × 700 mm | 535.5 × 571 × 664 mm |
| Paper Handling | Paper moves under pen | Paper moves under pen | Paper moves under pen | Paper stationary; Y-axis moves pen |
| Lift Motor | Standard motor | Standard motor | Standard motor | Closed-loop + limit switch |
| Hardware Reliability | Original design, some limitations | Original design, some limitations | Original design, some limitations | Fully upgraded, all 1.0 issues resolved |
| Supported Paper Thickness | 90–350 g/m² | 90–350 g/m² | 150–350 g/m² | 90–350 g/m² |
| Maintenance | Normal wear | Normal wear | Normal wear | Reduced wear on pads & mechanics |
| Ideal Use Cases | Medium-to-high volume handwriting | Industrial-scale handwriting | Industrial-scale handwriting | Industrial-scale handwriting with auto pen switch |
Shipping, Warranty & Support
Free Worldwide Shipping
Delivered anywhere in the world at no extra cost.
30-Day Easy Returns
Hassle-free returns or exchanges within 30 days.
Lifetime Care Guarantee
Support for your machine for its entire lifetime.
Dedicated Customer Support
Help available via email, chat, or Zoom.
Free Personal Training
Learn to set up and use your machine easily.
SUMMARY

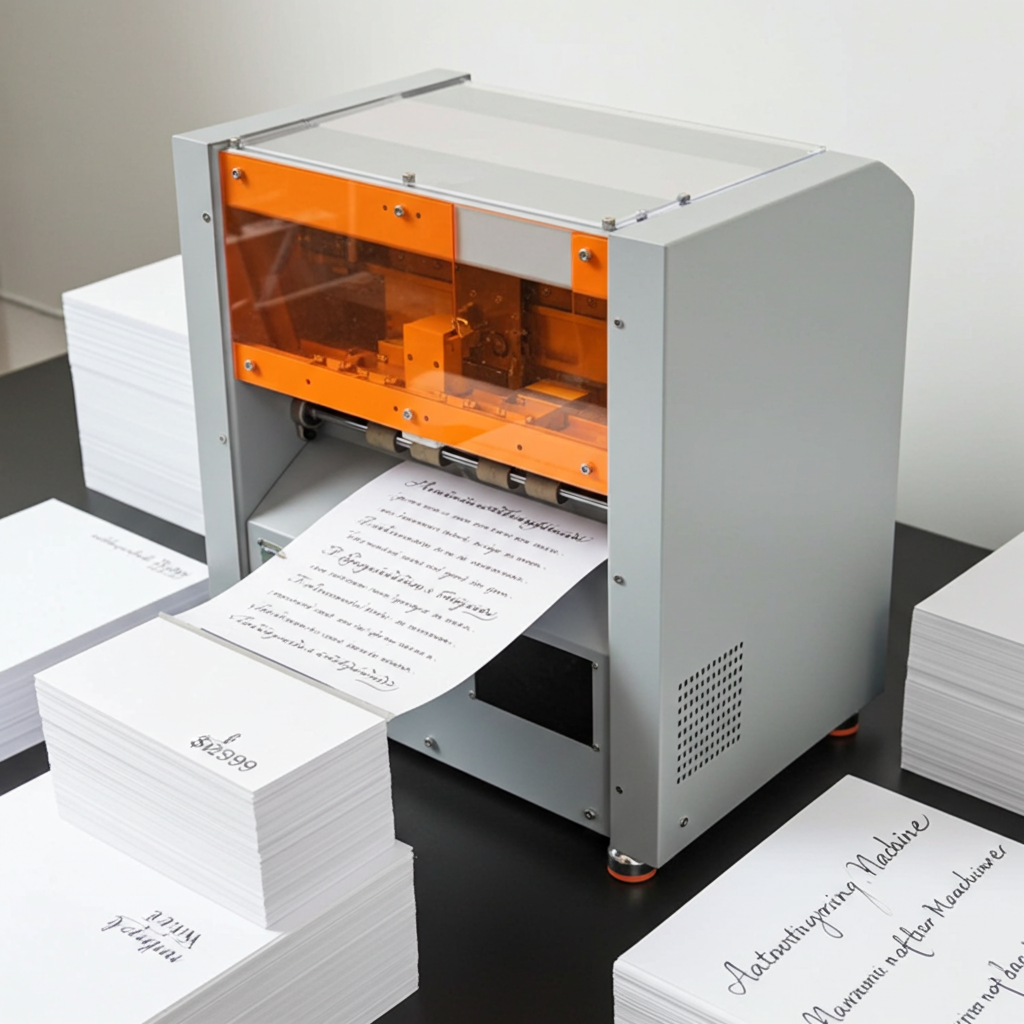

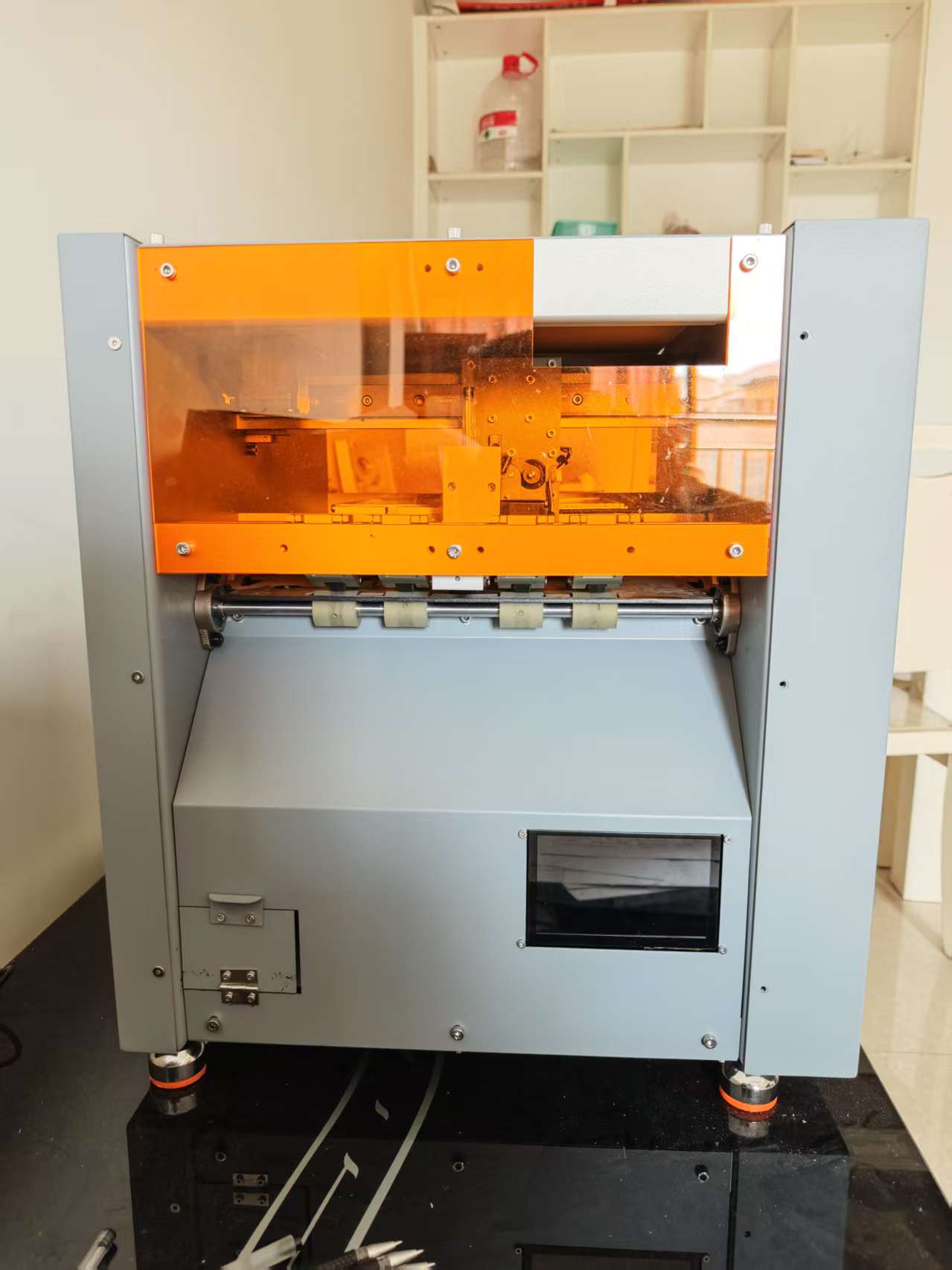

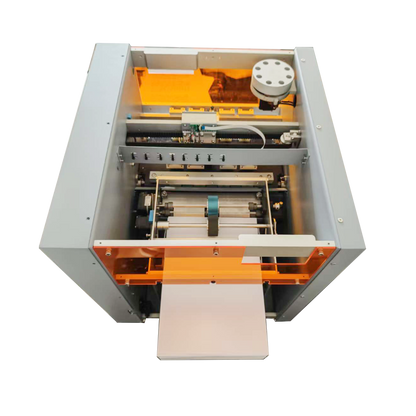

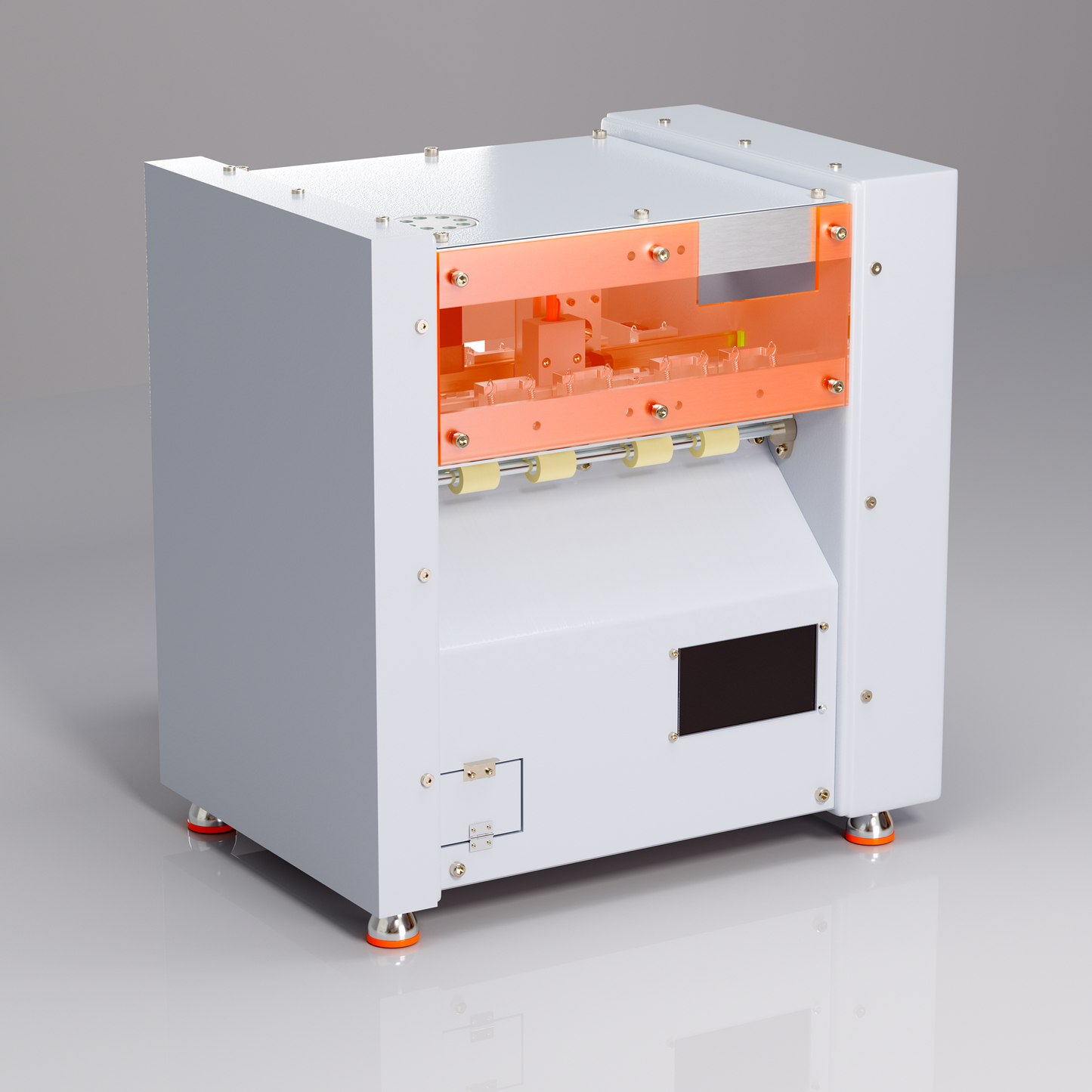

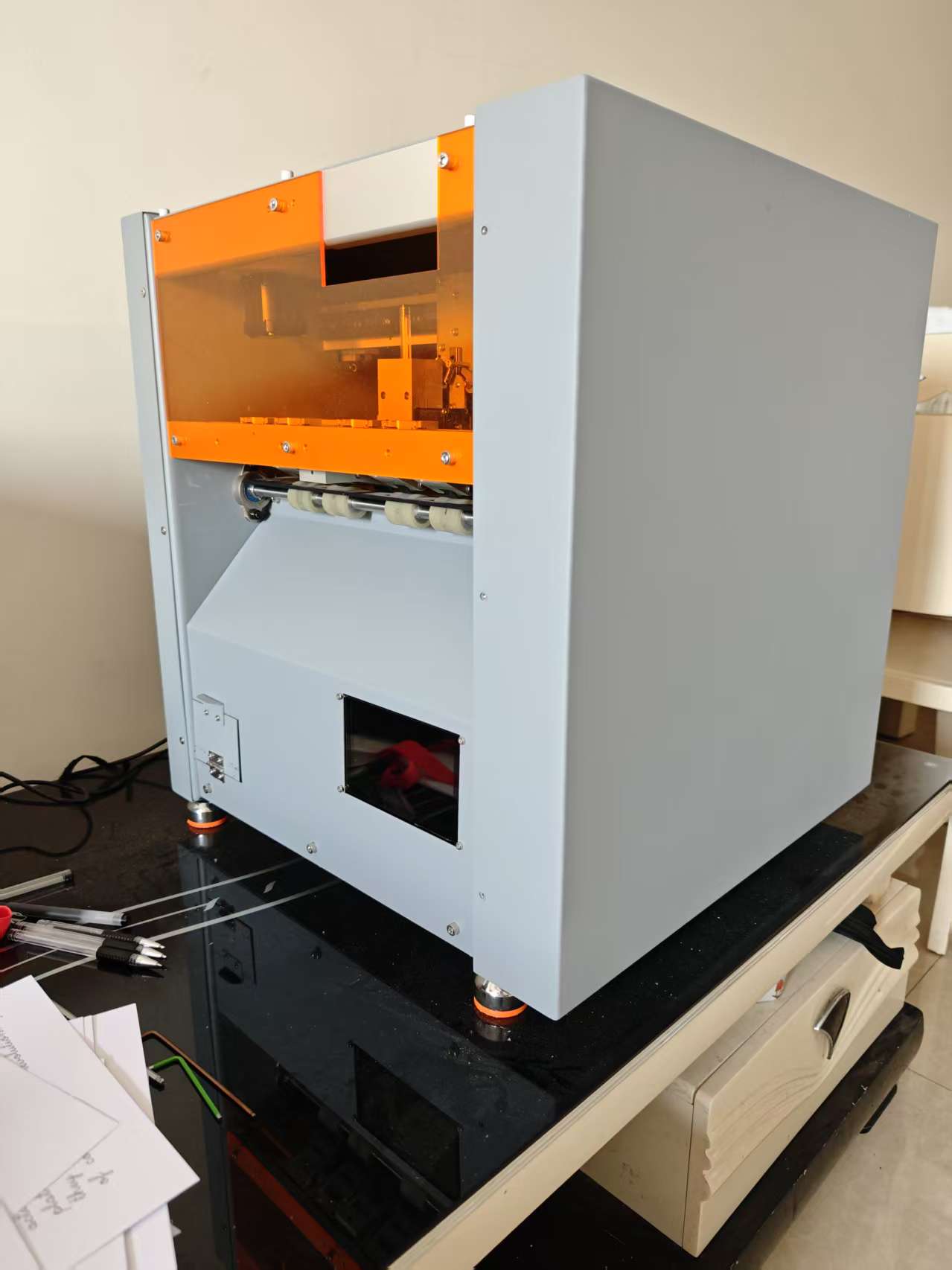

UUNA TEK® iAuto Premium Series is a flagship industrial-grade automatic handwriting machine, designed as the world’s largest-capacity solution for ultra-high-volume personalized handwriting, signatures, calligraphy, and professional direct mail production. It uses real pens to automate physical handwriting, enabling enterprises and large-scale service providers to deliver authentic handwritten communication at unmatched scale, speed, and precision.
Key capabilities:
1. Supports massive batch writing: up to 1,200 letters / 350 envelopes (Premium) and 2,400 letters / 700 envelopes (Premium Ultra) per load
Ultra-fast writing speed up to 200 characters per minute, with industrial 6/8 stepper motors and closed-loop control for stability
2. Built-in 7-inch smart touchscreen, dual-band WiFi, automatic pen switching (Ultra only), and support for thick paper up to 350g/m²
3. Compatible with Word/Excel/SVG/PDF, API integration, font deformation, multi-SVG batch processing, and multi-machine control (up to 200 units)
4. Supports both A4 and US Letter size papers, with heavy-duty structure for 24/7 continuous operation and extended service life
Primary users:
Enterprise marketing teams, large print houses, fulfillment centers, direct mail companies, corporate mailrooms, hospitality groups, and high-volume commercial handwriting service providers.
Customer Case Studies: Unlocking Efficiency and Authenticity with iAuto
دراسة حالة: كيف استخدم طلاب مدرسة جولييت سنترال الثانوية جهاز UUNA TEK 3.0 A3 قلم الرسم في تعليم التكنولوجيا
اكتشف كيف استخدم طلاب مدرسة جولييت سنترال الثانوية جهاز UUNA TEK 3.0 A3 لرسم القلم لتحويل التصاميم الرقمية إلى أعمال فنية حقيقية. دراسة حالة صفية حول التصنيع الرقمي، وحل المشكلات، والتعلم الإبداعي في تعليم التكنولوجيا.
سير عمل جهاز رسم بالقلم لبيانات نظم المعلومات الجغرافية (دراسة حالة) باستخدام UUNA TEK 3.0 A1 جهاز رسم بالقلم
دراسة حالة واقعية توضح كيفية تحويل بيانات نظم المعلومات الجغرافية إلى مخططات متجهة ورسمها باستخدام جهاز الرسم بالقلم UUNA TEK 3.0 A1، مما يوفر بديلاً فعالاً من حيث التكلفة للطابعات ذات التنسيق الكبير.

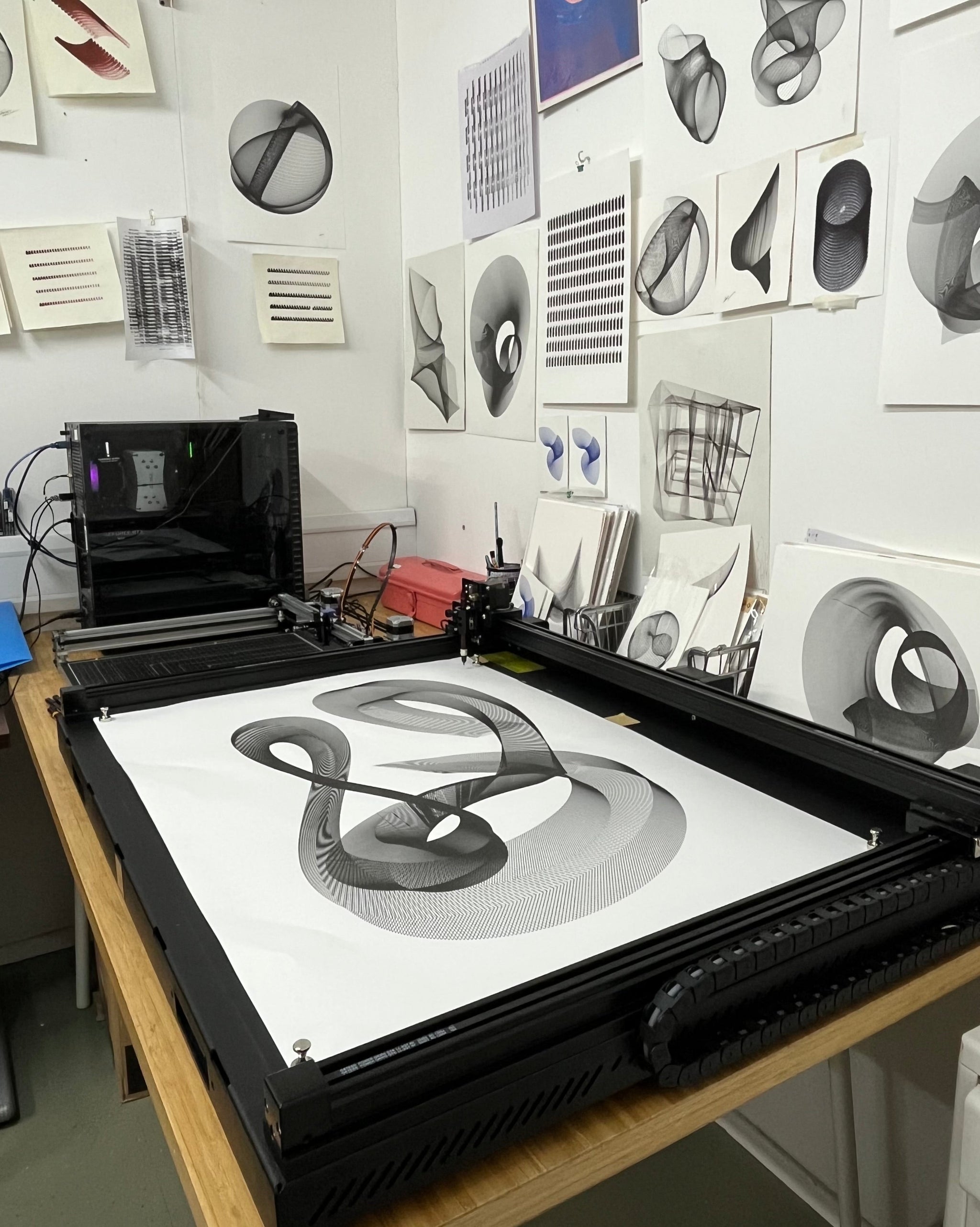

دراسة حالة: كيف حوّل الفنان التوليدي صموئيل سير عمله باستخدام UUNA TEK 3.0 A1 قلم تخطيط
اكتشف كيف يعزز الفنان الرقمي صموئيل واتروورث الإنتاجية والإبداع من خلال دمج UUNA TEK 3.0 A1 قلم بلوتر في سير عمله الفني التوليدي للأشكال الكبيرة والطباعة التناظرية السلسة.
دراسة حالة: مسح رمز الاستجابة السريعة المخصص + دمج رمز البريد الذكي USPS وترقية أتمتة سير العمل لإنتاج البريد المباشر عالي الحجم
اكتشف كيف قامت شركة رائدة في خدمات البريد المباشر في الولايات المتحدة بترقية أكثر من 10 ماكينات UUNA TEK iAuto باستخدام مسح رمز الاستجابة السريعة المخصص ورمز الشريط الذكي للبريد الأمريكي USPS، مما عزز الدقة، وقلل وقت التوقف، ومكّن من سير عمل آلي وقابل للتوسع للكتابة اليدوية.
Estimated Writing Time per Load — iAuto Premium & iAuto Premium Ultra
| Model | Material | Capacity per Load | Est. Characters / Item | Writing Speed | Time / Item | Total Writing Time (hrs) |
|---|---|---|---|---|---|---|
| iAuto Premium | A4 Letter | 1200 | 900 | 145 char/min | 6.21 min | 124.3 hrs |
| A6 Card | 1200 | 400 | 145 char/min | 2.76 min | 55.2 hrs | |
| #10 Envelope | 350 | 150 | 145 char/min | 1.03 min | 6.0 hrs | |
| iAuto Premium Ultra | A4 Letter | 2400 | 900 | 200 char/min | 4.5 min | 180.0 hrs |
| A6 Card | 2400 | 400 | 200 char/min | 2.0 min | 80.0 hrs | |
| #10 Envelope | 700 | 150 | 200 char/min | 0.75 min | 8.8 hrs |
Note: These times are theoretical estimates under continuous operation. Actual writing time may vary depending on message length, pauses for pen changes, and machine setup.
Specification: iAuto Premium Ultra VS iAuto Premium
Comparison between Different iAuto Automatic Writing Machines
| Category | Model / Series | Best For | Key Features |
|---|---|---|---|
| Bulk Writing | iAuto Standard / Advanced | Entry-level handwriting tasks, small businesses, schools, personal use | A3 operating size, writes up to 80 letters / 30 envelopes per batch, light & compact, supports Word/Excel/PDF/SVG/TXT |
| iAuto Plus | Medium volume handwritten mailings, marketing campaigns, print shops | A3 operating size, writes up to 210 letters / 80 envelopes per batch, light & compact, supports Word/Excel/PDF/SVG/TXT | |
| iAuto Premium | Medium to high-volume handwritten mailings, marketing campaigns, print shops | A4 operating size,Handles 1200 letters or 350 envelopes, thick paper up to 120mm, Wi-Fi 2.4G/5G, touchpad, 6 motors for high-output | |
| iAuto Premium Ultra | Industrial-scale handwriting, large mailrooms, corporate events | A4 operating size,2400 letters / 700 envelopes per session, supports all paper thickness, 8 motors, touchpad + auto pen switch, heavy-duty 60kg |
Core Upgrade Features
1. Smart Hardware Upgrade for Easier Operation
All models equipped with a 7-inch Android touchscreen system (Premium/Premium Ultra):
This feature was not available in previous versions. It allows real-time monitoring and direct control, streamlining the workflow. Technically supports handwriting file uploads and dual-band Wi-Fi (WiFi 5 / 2.4GHz) to prevent work interruptions caused by loose data cables.
Automatic Pen-Switching Function (Ultra only):An industry-first innovation that enables automatic switching between pens. Compatible with calligraphy pens, markers, and other tools with a diameter under 12mm. No manual intervention required—perfectly suited for complex design needs.
2. Massive Capacity & Smart Bulk Processing
Batch Writing Capacity per Load:

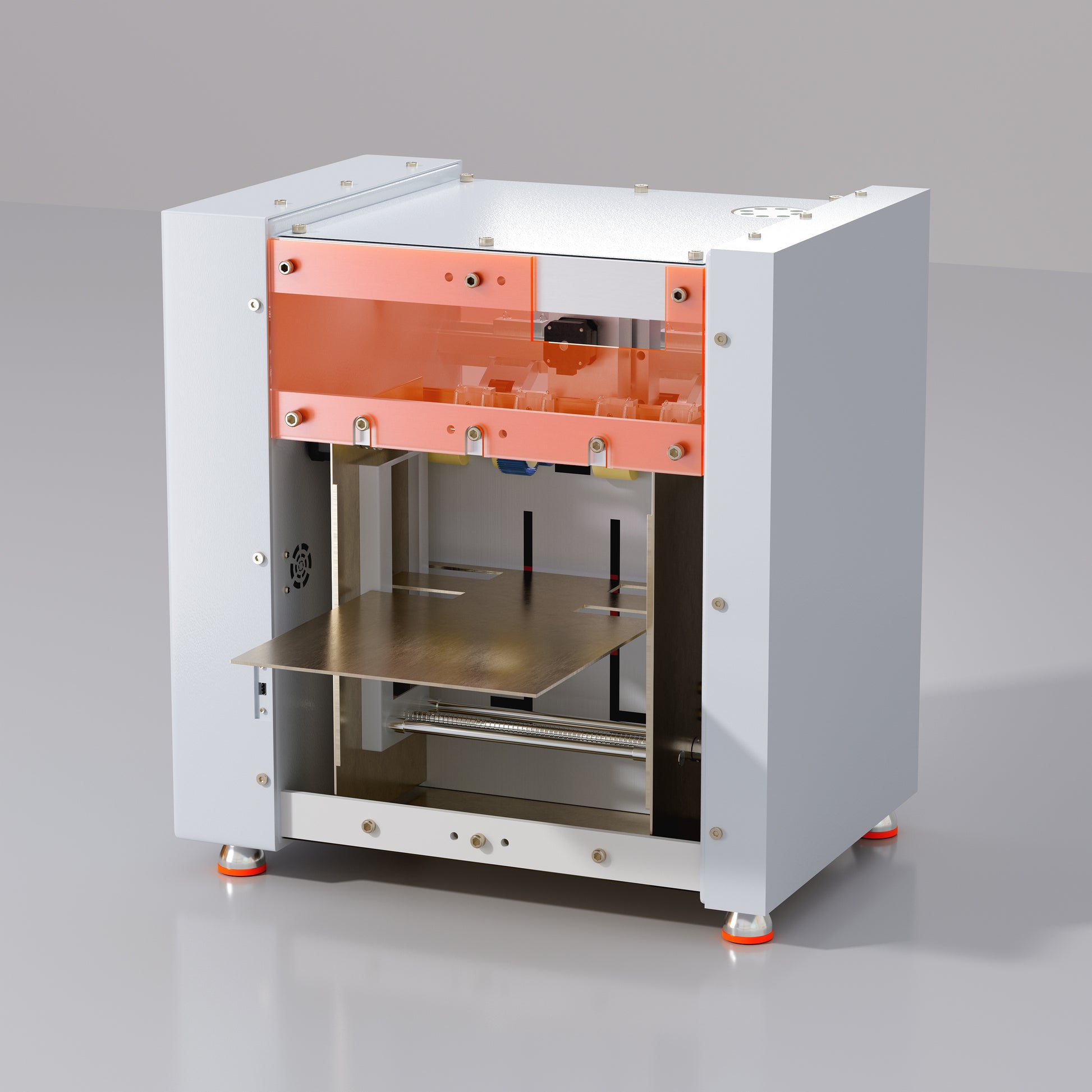

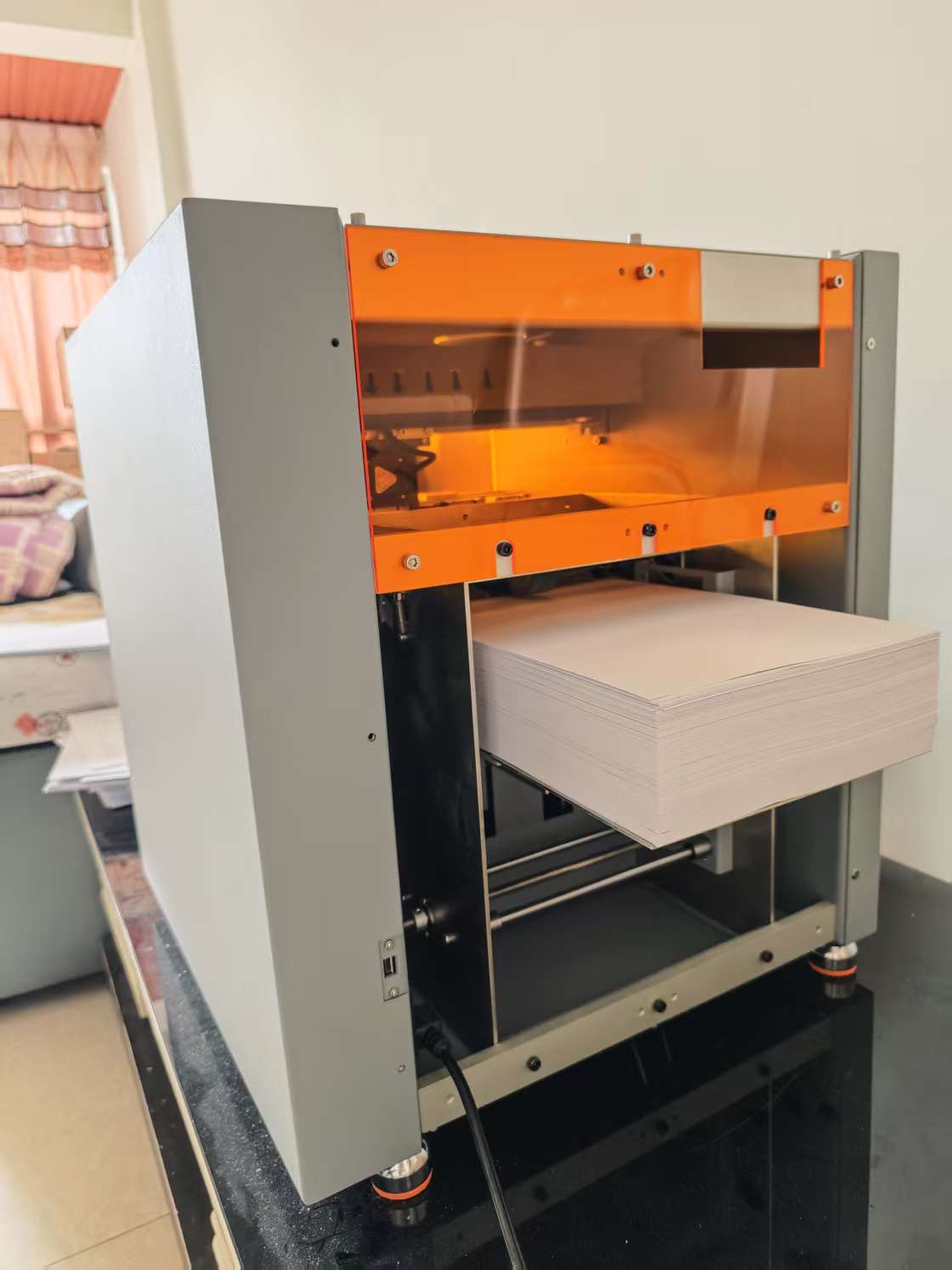

1. Premium: Paper tray height of 120mm, supports 1,200 letters + 350 envelopes per load.
2. Premium Ultra: Upgraded built-in power design with paper tray height increased to 240mm, supports 2,400 letters + 700 envelopes per load. Efficiency increased by 25 times, ideal for enterprise-level, large-scale requirements.
Note: The thickness and compactness of the paper directly affect the batch writing capacity. Actual performance is based on the paper tray height.
Printing Thickness and Paper Compatibility:
Premium/Ultra: Automatically adapts to paper thickness and supports all paper types available in the market (previous version had an upper limit of 250g/m²). Easily handles ultra-thick 350g/m² cards and envelopes.
Maximum Printing Thickness: Premium Ultra increases paper tray height to 240mm (compared to the previous version's 8–10mm), supporting the stacking of up to 700 ultra-thick sheets.
3. Blazing Fast Performance & Efficient Production
Premium Ultra Overclocked Speed:Now upgraded to 200 characters per minute (previous version: 145 characters) with 10,000-15,000 RPM high-speed rotation. This improvement boosts processing efficiency by 38%, making it perfect for enterprise-level large-volume tasks.
Industrial-Grade Power System:
Premium: Equipped with 6 industrial stepper motors (previously 2), providing doubled stability and precision, with closed-loop motors on the XY axis ensuring accurate high-speed writing.
Premium Ultra: 8 industrial-grade stepper motors designed for high-intensity, continuous operation with a 50% lifespan increase. The XY motors are extended closed-loop motors for precise high-speed writing.
4. Professional Compatibility & Precision Control
Closed-Loop Transmission Structure:
Uses closed-loop belts and HD linear slides, reducing maintenance costs by 40% and doubling the machine’s lifespan.
The paper lift platform features a 16mm ball screw, improving long-term durability.
High-precision laser-reflective sensors ensure consistent accuracy over long periods, unaffected by dust accumulation.
Smart Paper Detection:
Automatically recognizes SVG file size and text positioning (previous version required manual adjustments). Supports arbitrary sizes within A4 (including 4x6 index cards, #10 envelopes, etc.), achieving near-zero error rates.
5. Enterprise-Grade Expansion & Multi-Machine Coordination
Multi-Machine Control Seamlessly Upgraded: One computer can manage up to 200 iAuto devices (same as the previous version), but with the Premium Ultra’s 12-motor architecture, task distribution speed increases by 30%, and failure rates are reduced by 50%.
6. Enhanced Software Ecosystem for Limitless Creativity
Font Deformation 2.0:
A major upgrade from the previous "font deformation" feature, adding dynamic stroke algorithms and supporting one-click Quantum font imports (previously required manual adjustments). This enables the generation of thousands of handwriting variations.
SVG Streaming Processing:
A one-click multi-file upload system that automatically queues files for printing (previous version required individual file handling). Fully compatible with complex designs in Inkscape, resolving compatibility issues entirely.
7. Wireless IoT Connectivity with Industrial-Grade Stability
WiFi 2.4G/5G Dual Mode Connectivity:
Retaining the wireless functionality of previous versions but optimized for improved signal stability, reducing transmission latency by 70%.
64-bit Exclusive Motherboard & Industrial Power Supply:
Supports a wide voltage range of 110-220V, designed for 24/7 continuous operation, with a 60% improvement in heat dissipation efficiency.
8. Now Supports Letter Size Paper (8.5” × 11”)
The latest upgrade for the iAuto Premium Series adds full compatibility with Letter size papers, offering greater flexibility for users in the U.S. and North America.Enjoy the same smooth, precise, and realistic handwriting performance — now available for both A4 and Letter formats. Perfect for letters, cards, and business documents.
